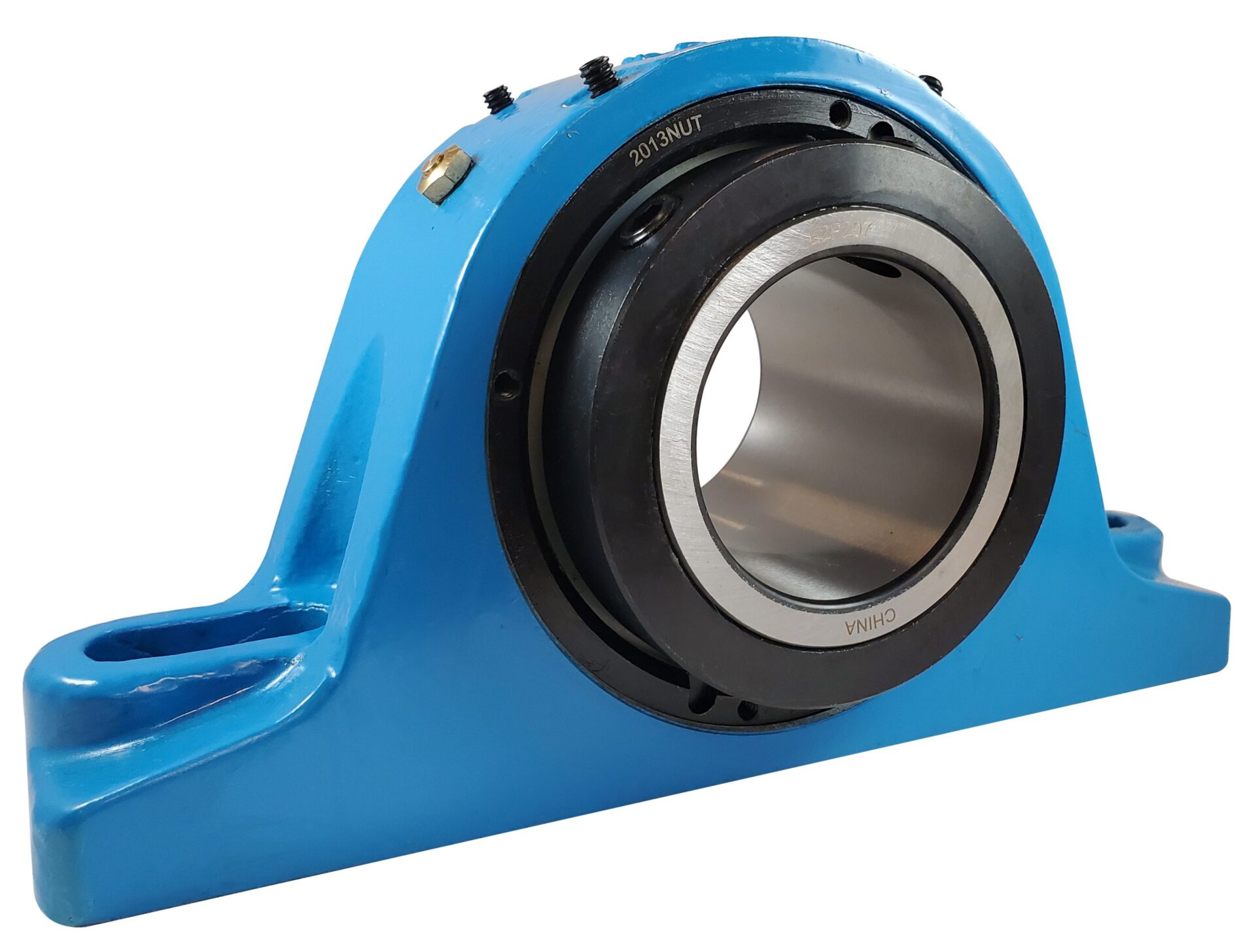

- Steel housing
- Powder coated housing (other coatings available)
- Field convertible from non-expansion to expansion (vice versa)
- Bearing insert pressed steel retainers
- Bearing rings & roller 52100 bearing steel
- Ulti-plex synthetic grease
- Teflon labyrinth seal
- Concentric locking collar
- Size range: 1-15/16” – 4-15/16”
- Bore sizes over 4” come with a double collar
- Housing dimensions match Type-E units
- Housings machined at each end for easier installation
- Interchangeable with most major brands
- High load capacity
- Handles misalignment up to ±1.5 degrees
- Purge relief valve
- Zerk fitting
[/tab]
[tab title=”Applications”]
- Metal mills
- Aggregate & cement
- Mining
- Sawmills & forestry
- Pulp & paper
- Material conveying
- Commercial & industrial building products
- Waste management & waste water treatment
- Off-highway & construction equipment
- Cranes, lifts & hoists
[/tab]
[tab title=”Drawing”]
[/tab]
[tab title=”Information Download”]
RBIBearing_Mounted Spherical Units PDF
[/tab]
[/tabs]
[/column_half_last]
| wdt_ID | RBI Bearing Part No. | Bore Size | A | B | D | E (min) | E (max) | F | G | H | J (Bolt size) | L1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | E4P307 | 3.438 | 3.750 | 7.50 | 2.38 | 9.25 | 11.25 | 13.623 | 3.74 | 1.85 | 3/4 | 4.46 |
